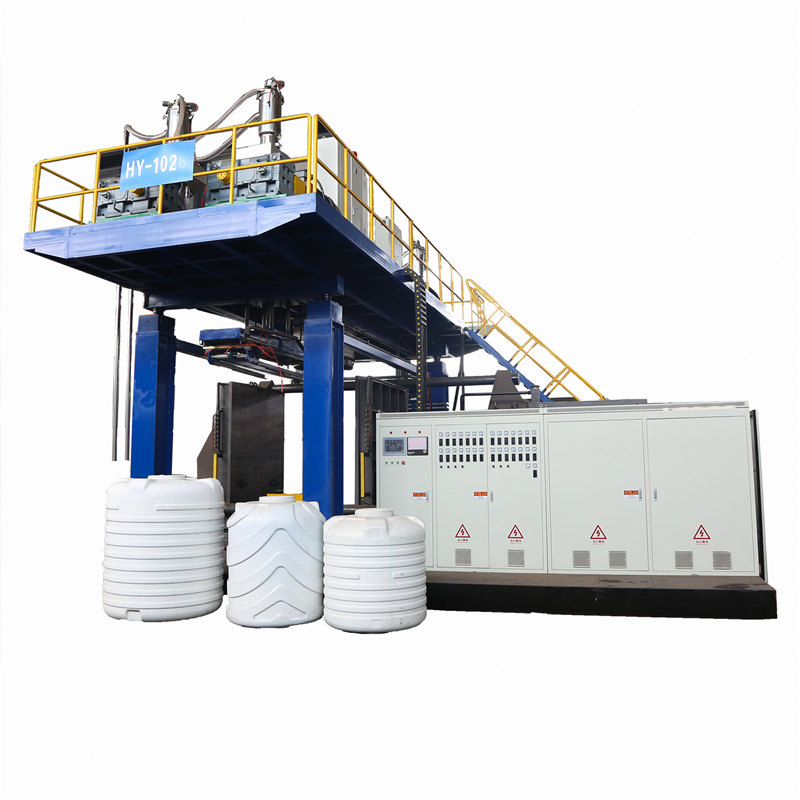

1000L8層吹塑機

基本參數 Basic Specification

適用原料applicable material

HDPE

中國·華玉

China·HUAYU

產品容量范圍capacity range

200-1000L,8layers

電壓Voltage

Pending

總功率total power

540kw

平均功率average power

320kw

機器尺寸Machine dimension (L*W*H)

8*9*6.5

產品產量productivity

16-25pcs/h

自動上料Auto Feeder

料斗材料hopper material

不銹鋼stainless steel

Stable performance, easy maintenance

上料形式feeding type

彈簧上料spring loaded

上料電機feeding motor

2.2kw*8

擠出系統 Extrusion System

螺桿直徑Screw diameter

80mm*8

Nitrided 38CrMoAIA

螺桿長徑比Screw L/D ratio

28：1

special designed screw  can ensure the material plasticizing uniform and efficient

擠出電機Extruder motor

37kw*8

減速機Reducer

225*8

Best quality brand in china ,long life and low noise

螺桿加熱功率Screw heating power

3kw*32

塑化能力Plasticizing capacity

560kg/h

機頭 die head

料缸容量Accumulator capacity

35kg

designed  by ourselves and get the patent

口模直徑Die diameter

According to products

機頭加熱功率Die head heating power

80kw

合模系統 Clamping  System

模板尺寸platen size

1500*1600*60mm(W*H*T)

smooth running, no noise; the clamping force is big

合模油缸clamping cylinder

250

合模油缸行程clamping cylinder stroke

1500mm

鎖模力clamping force

600KN

模板間距distance between platens

900-2400mm

最大模具尺寸max. mould size

1200*1500mm(W*H)

吹氣和冷卻系統 blowing and cooling system

擴展行程stretching stroke

according to products

吹針上下行程blow pin up/down stroke

600mm

氣座升降行程air seat stroke

400mm

最大氣壓maximum air pressure

0.8Mpa

耗氣量air consumption

1.5m3/min

冷卻方式Cooling method

Circulating water

冷卻水壓Water pressure

0.3MPa

冷卻水量Cooling water consumption

3m³/h

液壓系統 Hydraulic system

主油箱容量main oil tank capacity

890L

Servo motor, less energy consumption, high efficiency, low noise

主油泵main oil pump

gear pump125CC

主油泵電機main oil pump motor

37kw

伺服油箱Servo oil tank capacity

200L

伺服油泵Servo oil pump model

Plunger pump22
